Name: Oversuspension kit for KTM 890 SMT YEAR 2023-2024
Brand: Oversuspension
SKU: ROVS-T2#0058
Price: 484.88 USD
Availability: InStock

supermotard

WHAT IS OVERSUSPENSION?

It is a mechanical device that mounts on your motorcycle's swingarm to capture tire rebound and convert it into a force that pushes the wheel toward the ground.

SUPERMOTARD BENEFITS

Stable rear end under hard braking

More control on corner entry

More predictable drift

Less bouncing when braking at the limit

More stability on dirt sections

Reduces your fatigue and tension

...

how oversuspension works

The mass collects the elastic energy from the tire.

The spring stores that energy.

The energy is released by pushing the wheel towards the ground.

up to 35 times/second

Find your bike

Brand

Model

Year

available supermotard brands

free returns

lifetime warranty

try it risk-free

payment in installments

"The feeling of safety I get with the motorcycle now is immense. I notice that it doesn't understeer when entering a curve faster; it encourages you to lean into the turn, all with a much greater sense of security than before I installed it. Also, the sensation of being closer to the ground is noticeable in short, low-speed turns."

oversuspension para KTM 890 SMT AÑO 2023-2024

Oversuspension kit for KTM 890 SMT YEAR 2023-2024

$484.88

Kit Oversuspension para DUCATI Hypermotard 939 AÑO 2016-2018

Oversuspension kit for DUCATI Hypermotard 9399 YEAR 2016-2018

$484.88

Kit Oversuspension para APRILIA SXV 450 / 550 AÑO 2009-2011

OVERSUSPENSION INSTALADO EN APRILIA SXV - TUONO - SHILVER - DORSODURO

Oversuspension kit for APRILIA SXV 450 / 550 YEAR 2009-2011

$484.88

DISPOSITIVO OVERSUSPENSION PARA KTM 450 SMR AÑO 2013-2014

Oversuspension kit for KTM 450 SMR YEAR 2013-2014

$467.18

Oversuspension kit for KTM 450 SMR YEAR 2023-2026

$467.18

Kit Oversuspension para KTM 690 SMC-R AÑO 2023-2024

Oversuspension kit for KTM 690 SMC-R YEAR 2023-2024

$484.88

Kit Oversuspension para APRILIA DORSODURO 900 AÑO 2017-2020

Oversuspension kit for APRILIA DORSODURO 900 Kit YEAR 2017-2020

$484.88

Kit Oversuspension para KTM 690 SMC AÑO 2008-2022

Oversuspension kit for KTM 690 SMC YEAR 2008-2022

$484.88

Kit Oversuspension para DUCATI Hypermotard 950 RVE / SP AÑO 2016-2025

Oversuspension kit for DUCATI Hypermotard 950 RVE / SP YEAR 2016-2025

$484.88

Kit Oversuspension para HONDA CRF 450 RL SUPERMOTO AÑO 2024-2027

Oversuspension kit for HONDA CRF 450 RL SUPERMOTO YEAR 2024-2027

$467.18

OVERSUSPENSION PARA TM 450 AÑO 2018-2026

Oversuspension kit for TM 450 YEAR 2018-2026

$484.88

NEED HELP?

FREQUENTLY ASKED QUESTIONS

What is oversuspension?

OVERSUSPENSION is the first and only device in the world that controls tire rebound, thus exponentially increasing your riding safety and significantly improving your motorcycle's handling.

Why doesn't a motorcycle's suspension control tire rebound?

A motorcycle's shock absorber only manages the elasticity of the chassis with the rest of the rear end.

Oversuspension manages the elasticity of your tire with the swingarm.

We are talking about two separate elastic entities that work at different frequencies:

A shock absorber averages 1.2 cycles/second.
Oversuspension averages 18 cycles/second.

If I control the elasticity of the tire, I reduce the system's disorder.

What benefits does over-suspension generate?

With Oversuspension installed on your motorcycle, you will enjoy more traction, better braking, less riding fatigue, and reduced tire wear.

40% increase in traction

90% reduction in highside crashes

60% reduction in aquaplaning effect

30% reduction in musculoskeletal fatigue

How do I install the Oversuspension?

We recommend that the Oversuspension kit be installed by a specialized workshop.

If you access the following link, you can view the installation manual for the Oversuspension kit for road motorcycles:

https://oversuspension.es/pages/manual-instalacion-kit-oversuspension-moto-carretera

If your motorcycle is an Offroad model, you can view the installation manual at the following link: https://oversuspension.es/pages/manual-de-instalacion-bmw-monobrazo

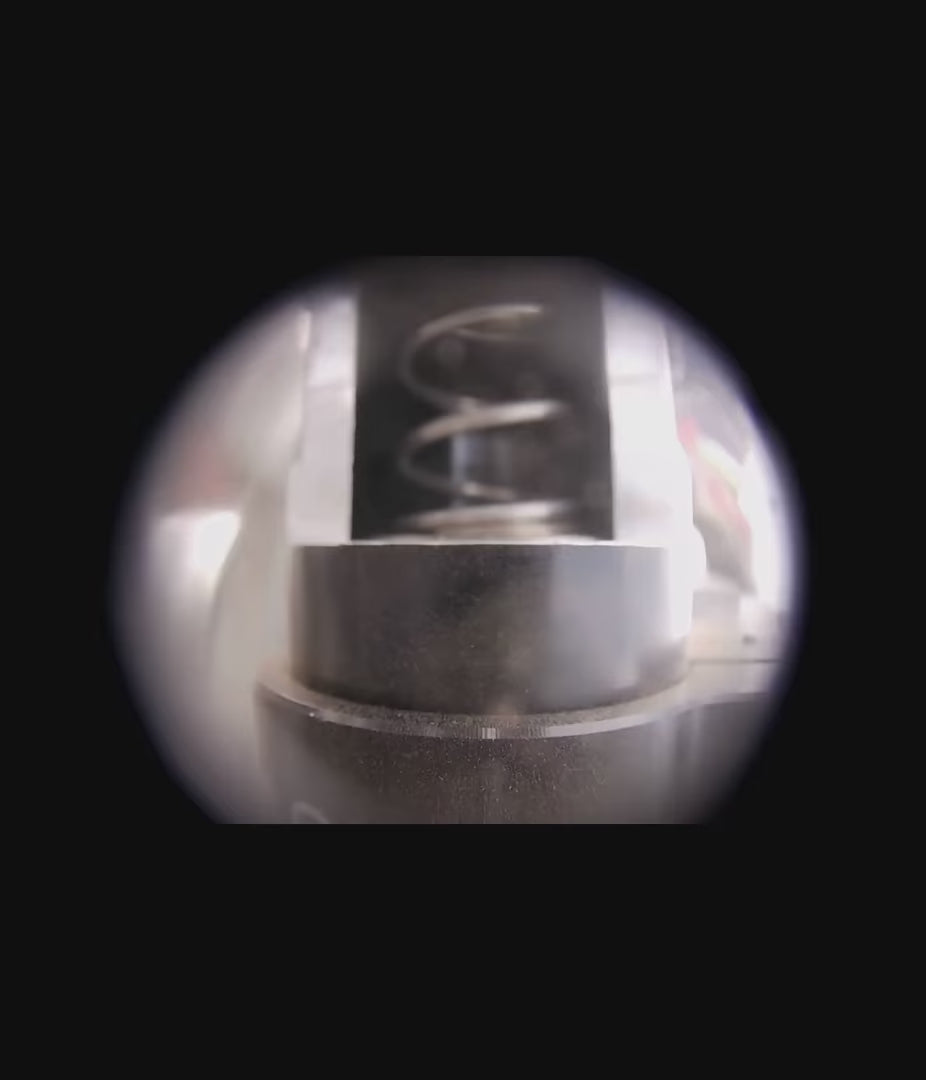

How does Oversuspension work?

Oversuspension is a high-tech mechanical component.

It consists of a mobile central core made of heavy metal, a tungsten alloy that slides in a bushing with ballistic technology.

An aerospace-grade spring pushes this mass against a special polymer that changes its structure depending on the force with which it is compressed.

The impact energy pushes the wheel against the ground, up to 35 times in a single second.

How does oversuspension affect a motorcycle's electronic suspension?

By integrating our vibrational technology with an electronic suspension system, the amount of information to be managed received by the ECU is reduced, which optimizes its response and improves the overall efficiency of the suspension system.

In addition, our system also optimizes other electronically managed elements such as the ABS, reducing its workload and allowing it to operate more precisely and efficiently.

How does oversuspension affect a cardan-type transmission?

Un uncontrolled Tire Bounce generates Vibrations that transfer to your Motorcycle's Transmissions and Gears.

Using Oversuspension in Cardan-type transmissions minimizes micro-gear wear, known as Pitting. Avoids Costly Breakdowns.

How is the Oversuspension device adjusted on a motorcycle?

The Oversuspension device can be adjusted depending on use, terrain type, and weather conditions.

The following adjustment scheme always refers to the device from fully open, towards the + sign.

ADJUSTMENT FOR 24-CLICK DEVICE

The adjustment for using the device in MOTOCROSS is as follows:

On a sandy track, the device should be kept fully open, i.e., towards the + position. This way, the spring preload on the mass will be minimal and will adapt better to sandy tracks.
On muddy tracks, always keep the device fully open towards the + position.
On hard, dry tracks with shallow bumps, close the device 4 clicks towards the - position.
On hard, dry tracks with deep bumps, close the device 8 clicks towards the - position.
On Super Cross type tracks, close the device 6 clicks towards the - position.

The adjustment for using the device in ENDURO is as follows:

On a timed track, close 2 clicks towards the - sign.
On a slippery track and surface, leave it fully open towards the + sign.
For Trial Cross: close 4 clicks towards the - sign.

The adjustment for using the device on a RACE TRACK is as follows:

In wet conditions (WET), the device should be left completely open towards the + sign.
On a dry track with undulating surface, close 4 clicks towards the - sign.
On a dry track with a smooth surface, adjust all settings fully open towards the + sign.

The adjustment for using the device on
MAXI-TRAIL is as follows:

Rainy road: completely open towards the + sign.
Uneven trail: close 4 clicks towards the - sign.
With passenger: add 6 clicks to the previous settings.

The adjustment for using the device on the ROAD is as follows:

In rain, fully open to the + sign, even with a passenger.
On a dry road, close 2 clicks towards the - sign.
On a dry road, with a passenger, close 4 clicks towards the - sign.
On a dry road, with luggage and a passenger, close 8 clicks towards the - sign.

The adjustment for the RALLY version is as follows:

This refers only to the specific Rally kit version.
In the desert, close 2 clicks towards the - sign.
In the desert with rocks and many bumps, close 6 clicks towards the - sign.

ADJUSTMENT FOR 18-CLICK DEVICE

The adjustment for using the device in MOTOCROSS is as follows:

On a sandy track, the device should be kept fully open, i.e., towards the + position. This way, the spring preload on the mass will be minimal and will adapt better to sandy tracks.
On muddy tracks, always keep the device fully open towards the + position.
On hard, dry tracks with shallow bumps, close the device 2 clicks towards the - position.
On hard, dry tracks with deep bumps, close the device 5 clicks towards the - position.
On Super Cross type tracks, close the device 4 clicks towards the - position.

The adjustment for using the device in ENDURO is as follows:

On a timed track, close 1 click towards the - sign.
On a slippery track and surface, leave it fully open towards the + sign.
For Trial Cross: close 2 clicks towards the - sign.

The adjustment for using the device on a RACE TRACK is as follows:

In wet conditions (WET), the device should be left completely open towards the + sign.
On a dry track with undulating surface, close 2 clicks towards the - sign.
On a dry track with a smooth surface, adjust all settings fully open towards the + sign.

The adjustment for using the device on
MAXI-TRAIL is as follows:

Rainy road: completely open towards the + sign.
Uneven trail: close 2 clicks towards the - sign.
With passenger: add 4 clicks to the previous settings.

The adjustment for using the device on the ROAD is as follows:

In rain, fully open to the + sign, even with a passenger.
On a dry road, close 1 click towards the - sign.
On a dry road, with a passenger, close 2 clicks towards the - sign.
On a dry road, with luggage and a passenger, close 5 clicks towards the - sign.

The adjustment for the RALLY version is as follows:

This refers only to the specific Rally kit version.
In the desert, close 1 click towards the - sign.
In the desert with rocks and many bumps, close 4 clicks towards the - sign.

ADJUSTMENT FOR 12-CLICK DEVICE

The adjustment for using the device in MOTOCROSS is as follows:

On a sandy track, the device should be kept fully open, i.e., towards the + position. This way, the spring preload on the mass will be minimal and will adapt better to sandy tracks.
On muddy tracks, always keep the device fully open towards the + position.
On hard, dry tracks with shallow bumps, close the device 2 clicks towards the - position.
On hard, dry tracks with deep bumps, close the device 4 clicks towards the - position.
On Super Cross type tracks, close the device 3 clicks towards the - position.

The adjustment for using the device in ENDURO is as follows:

On a timed track, close 1 click towards the - sign.
On a slippery track and surface, leave it fully open towards the + sign.
For Trial Cross: close 2 clicks towards the - sign.

The adjustment for using the device on a RACE TRACK is as follows:

In wet conditions (WET), the device should be left completely open towards the + sign.
On a dry track with undulating surface, close 2 clicks towards the - sign.
On a dry track with a smooth surface, adjust all settings fully open towards the + sign.

The adjustment for using the device on
MAXI-TRAIL is as follows:

Rainy road: completely open towards the + sign.
Uneven trail: close 2 clicks towards the - sign.
With passenger: add 3 clicks to the previous settings.

The adjustment for using the device on the ROAD is as follows:

In rain, fully open to the + sign, even with a passenger.
On a dry road, close 1 click towards the - sign.
On a dry road, with a passenger, close 2 clicks towards the - sign.
On a dry road, with luggage and a passenger, close 4 clicks towards the - sign.

The adjustment for the RALLY version is as follows:

This refers only to the specific Rally kit version.
In the desert, close 1 click towards the - sign.
In the desert with rocks and many bumps, close 3 clicks towards the - sign.

Does the Oversuspension device require maintenance?

Being a mechanical device, without oils or greases, the Oversuspension device does not require maintenance.

You just have to pay attention to the usual cleaning of your motorcycle.

We periodically recommend checking the tightening torques of the fastening screws.

Is the Oversuspension device a tuned mass damper?

Unlike the mass damper, which has one mass and two springs that embrace it, the Oversuspension device is a mass that strikes a special polymer.

Does the product have a lifetime warranty?

The operation of the Oversuspension device is guaranteed for life.

The high quality of our materials and the precision of our manufacturing processes allow us to offer this guarantee.

The warranty does not cover:

Loss, fire, or theft.
Aesthetic damage such as scratches, dents, color variations, or wear and tear from use
Improper handling or incorrect installation of the device.
Unauthorized modifications.

What is the delivery time for an order?

You will receive your order at the provided address within: Spain: 24 hours-12 business days, Europe: 7-15 business days, International: 15-20 business days.

To which countries is the Oversuspension device shipped?

We ship to all the following countries:

Spain, Portugal, Andorra, Bulgaria, Croatia, Cyprus, Czechia, Denmark, Estonia, Finland, Germany, Greece, Hungary, Ireland, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Romania, Slovakia, Slovenia, Sweden, Italy, Mexico, United States, France, Austria, Belgium, Australia, New Zealand, Anguilla, Malaysia, Norway, Switzerland, Canada, United Kingdom, Antigua and Barbuda, Argentina, Aruba, Bahamas, Barbados, Belize, Bermuda, Bolivia, Brazil, British Virgin Islands, Caribbean Netherlands, Cayman Islands, Chile, Colombia, Cook Islands, Costa Rica, Curacao, Dominica, Dominican Republic, Ecuador, El Salvador, Falkland Islands, Fiji, French Guiana, Grenada, Guatemala, Guyana, Haiti, Honduras, Jamaica, Kiribati, Martinique, Montserrat, Nauru, Nicaragua, Niue, Norfolk Island, Panama, Paraguay, Peru, Pitcairn Islands, Sint Maarten, Solomon Islands, Saint Barthélemy, Saint Kitts and Nevis, Saint Lucia, Saint Martin, Saint Pierre and Miquelon, Saint Vincent and the Grenadines, Suriname, Timor-Leste, Tokelau, Trinidad and Tobago, Turks and Caicos Islands, Tuvalu, United States Minor Outlying Islands, Uruguay, Venezuela, Wallis and Futuna

Can I return the product if I'm not satisfied?

If you are not satisfied with the performance of the Oversuspension kit, you have 30 calendar days from the date of receipt of your order to return it. Return shipping is free.
